TABLET COMPRESSION
MACHINES

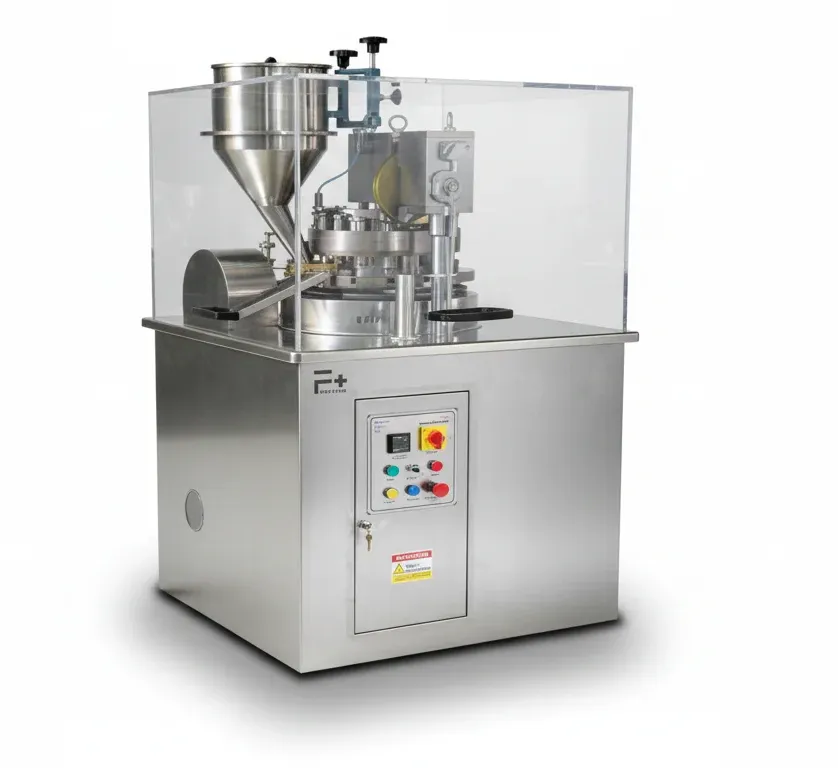

PRESS+EFF
Specialized Press: Single-sided rotary tablet press designed especially for effervescent tablets.
High Compression: Features 10-ton main compression force for robust tablet formation.
Worm Drive Turret: Uses a worm and worm ring drive system for reliable power transfer.
Variable Speed: Includes variable pulley for turret speed change, offering high process flexibility.
Coated Turret: Two-piece turret with ELNP coating enhances wear resistance and machine life.
Manual Control: Manual control for weight and thickness adjustment conveniently placed inside cabinet.
Gravity Feeding: Gravity feed frame included to handle low-density effervescent powder.
Manual Lubrication: Manual hand pump lubrication system and drip feed for punches minimize maintenance.
Control: Basic machine operation via control panel with push buttons for essential functions.
| Feature | PRESS+ EFF I | PRESS+ EFF II | PRESS+ EFF III | PRESS+EFF IV |
|---|---|---|---|---|
| No. of Stations | 16 | 20 | 27 | 33 |
| Tooling | D | D | B | BB |
| Max. Tablet Diameter (mm) | 25 | 25 | 13 | 11 |
| Max. Depth of Fill (mm) | 20 | 20 | 17 | 17 |
| Max. Tablet Thickness (mm) | 8 | 8 | 8 | 8 |
| Max. Output / Hour | 34,560 | 43,200 | 58,320 | 71,280 |
| Max. Turret RPM | 36 | 36 | 36 | 36 |
| Max. Main Compression (ton) | 10 | 10 | 6.5 | 6.5 |
