TABLET COMPRESSION
MACHINES

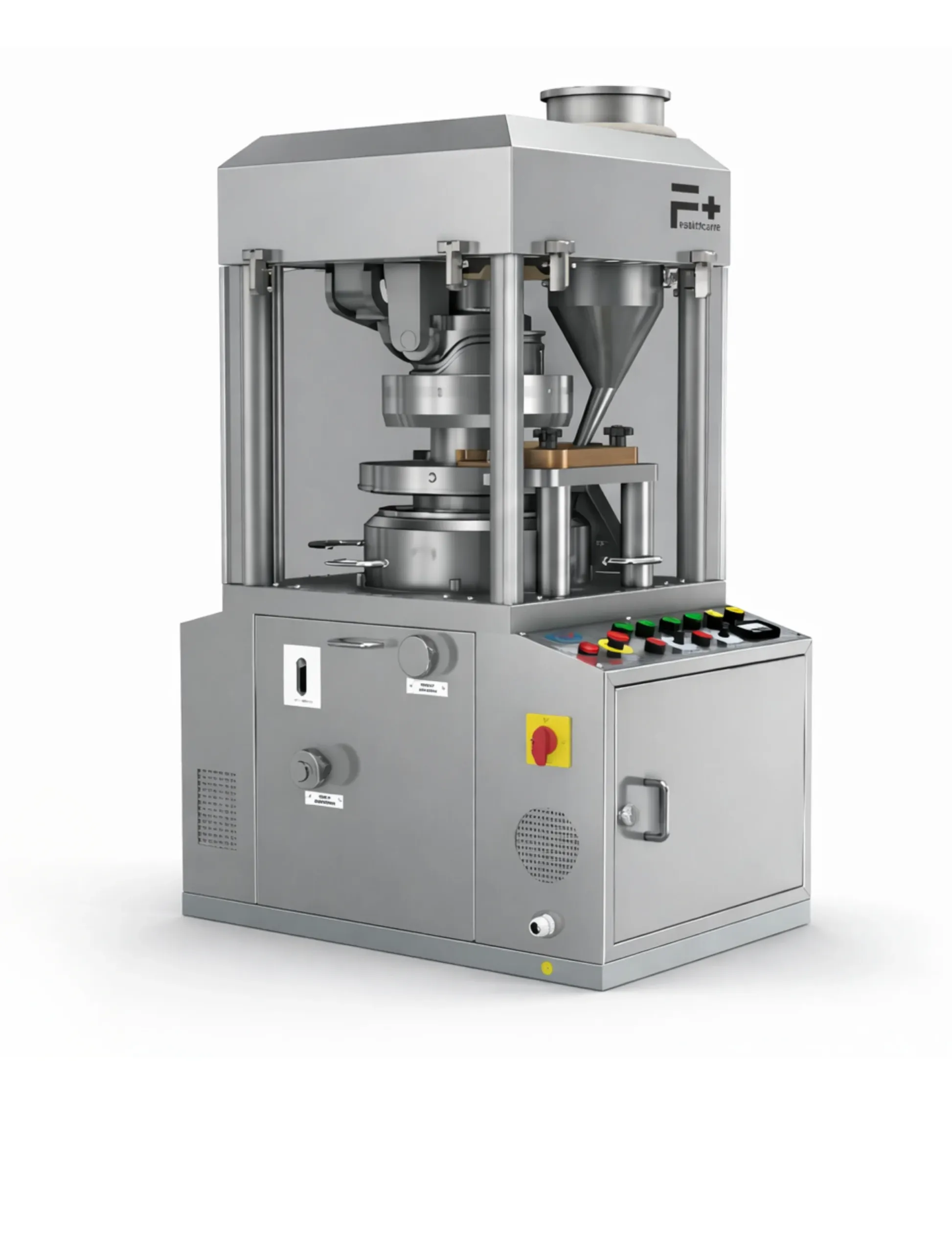

Press+ Lab
Single Layer: Designed as a single-layer rotary tablet press, ideal for standard tablet production.
Compression Force: Features 2-ton pre-compression and 6-ton final main compression.
Centre Drive: Equipped with a centre-drive turret for smooth and stable operation.
Coated Turret: Two-piece turret with ELNP coating enhances wear resistance and machine life.
Manual Control: Manual side control for weight and thickness adjustment simplifies trials.
Gravity Feed: Includes a gravity-feed frame for uniform powder flow.
cGMP Compliant: Fully compliant with cGMP model standards.
Smart Operation: Machine operations via control panel with push buttons and a rotary potentiometer.
Optional Bi-layer: Bi-layer model available with 9 stations (STN) and D tooling.
| Feature | Press+ Lab I | Press+ Lab II | Press+ Lab III |
|---|---|---|---|
| No. of Stations | 8 | 10 | 6+6, 4+4+4 |
| Tooling | D | B | D+B / D+B+BB |
| Max. Tablet Diameter (mm) | 23 | 17 | 23/15 |
| Max. Depth of Fill (mm) | 20 | 17 | 20 |
| Max. Pre-compression (Ton) | 2 | 2 | 2 |
| Max. Main Compression (Ton) | 6 | 6 | 6 |
| Max Tablet Output / Hour | 15,360 | 19,200 | 11,520 / 7,680 |
| Max. Turret RPM | 32 | 32 | 32 |
Press+ Lab 2.0
Dual Layer: Designed as a double layer rotary tablet press, ideal for complex multi-layer products.
Coated Turret: Two-piece turret with ELNP coating enhances wear resistance and machine stability.
Variable Speed: ACVFD provides variable speed control for main and force feeder motors, allowing process flexibility.
Flexible Feeding: Includes two paddle force feeding and gravity feed frame options to handle various powders.
Single Side Option: Single side machine available with a separate, lower-force 4-ton pre-compression configuration.
Optional Data: Optional PLC control with 21 CFR Part 11 compliance available for data logging and regulatory needs.
Optional QC: Auto weight control (AWC) and single tablet rejection (AFR) are available as optional QC systems.
Pneumatic Sampling: 1st layer tablet sampling uses a pneumatic system for easy and accurate QC checks.
| Feature | Press+ Lab 2.0 I | Press+ Lab 2.0 II | Press+ Lab 2.0 III |
|---|---|---|---|
| No. of Stations | 13 | 16 | 19 |
| Tooling | D | B | BB |
| Max. Tablet Diameter (mm) | 25 | 16 | 13 |
| Max. Depth of Fill (mm) | 20 | 17 | 17 |
| Max. Output / Hour | 27,300 | 33,600 | 39,900 |
| Max. Turret RPM | 35 | 35 | 35 |
| Max. Feeder RPM | 35 | 35 | 35 |
| Max. Main Compression (KN) | 10 | 10 | 10 |
| Max. Pre-compression (KN) | 4 | 4 | 4 |
Press+ SR
Coated Turret: Two-piece turret with ELNP coating enhances wear resistance and machine stability.
Smart Operation: PLC control with TOUCH SCREEN HMI is available for automated process control.
Auto Lubrication: Includes auto lubrication system and drip feed for punches, minimizing maintenance.
Variable Speed: ACVFD is provided for the main and force feeder motors for precise process flexibility.
Optional QC: Auto weight control (AWC) and single tablet rejection (AFR) are optional for continuous quality control.
Data Compliant: Optional QC systems are 21 CFR Part 11 compliant for regulatory record-keeping.
Optional Turret: Three-piece turret with SS316 Die Plate is an optional upgrade for high-purity applications.
cGMP Compliant: Fully compliant with cGMP model standards for hygienic and quality manufacturing.
| Feature | Pro Press I | Pro Press II | Pro Press III |
|---|---|---|---|
| No. of Stations | 20 / 27 / 33 | 30 / 37 / 45 | 49 / 61 / 75 |
| Tooling | D / B / BB | D / B / BB | D / B / BB |
| Max. Tablet Diameter (mm) | 25 / 16 / 13 | 25 / 16 / 13 | 25 / 16 / 13 |
| Max. Depth of Fill (mm) | 20 / 17 / 17 | 20 / 17 / 17 | 20 / 18 / 18 |
| Max. Tablet Thickness (mm) | 8 | 8 | 8 |
| Max. Output / Hour | 72,000 / 97,200 / 118,800 | 180,000 / 222,000 / 270,000 | 294,000 / 366,000 / 450,000 |
| Max. Turret RPM | 35 | 100 | 100 |
| Max. Feeder RPM | 60 | 100 | 70 |
| Max. Main Compression (Ton) | 10 / 6.5 / 6.5 | 6.5 / 6.5 / 4 | 10 |

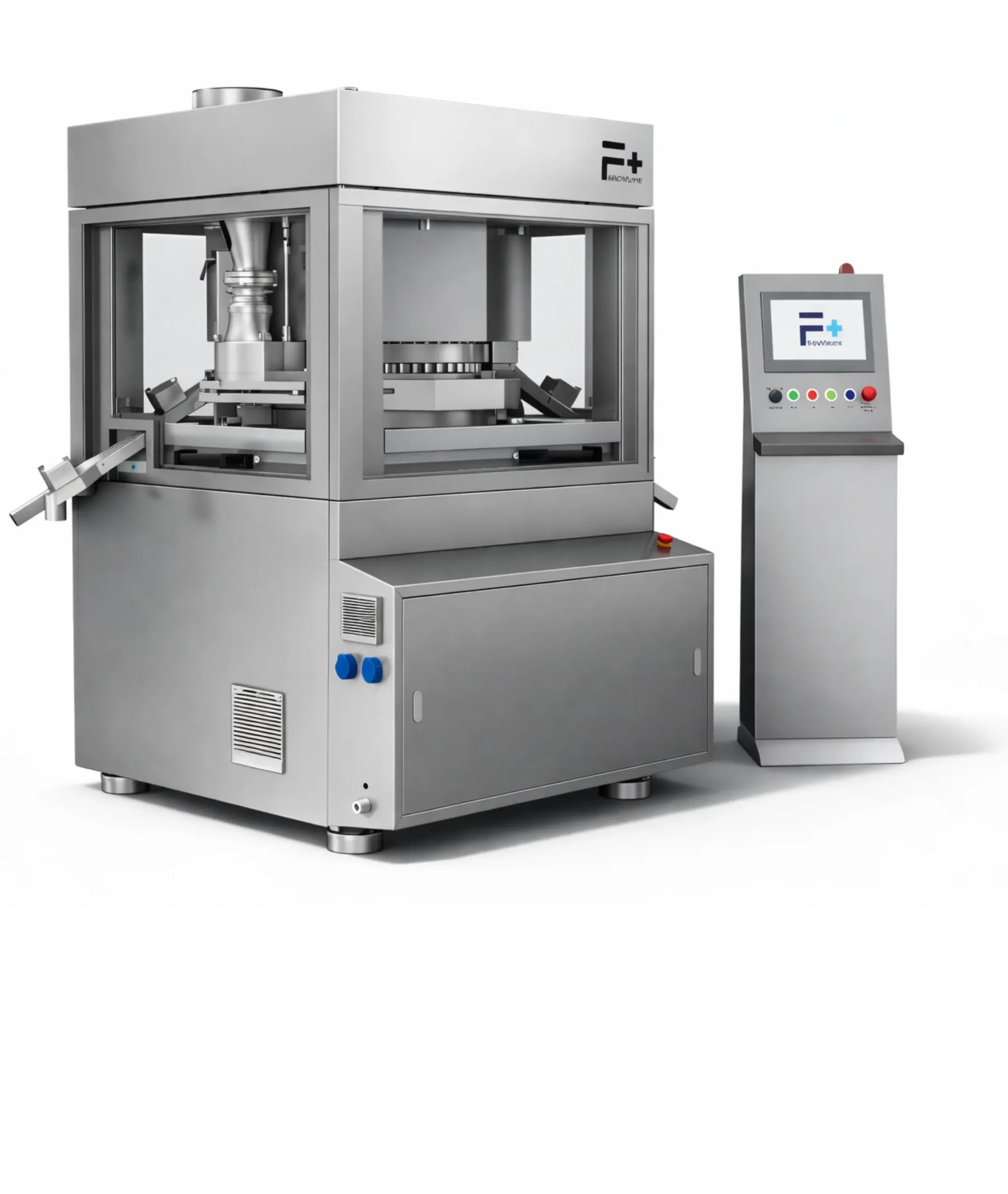

Press+ DR
Coated Turret: Two-piece turret with ELNP coating enhances wear resistance and machine stability.
Diverse Drives: Available with Worm Drive or Helical Ring and Pinion Drive systems.
Flexible Feeding: Features a two-paddle or three-paddle force feeding system to handle diverse powder characteristics.
Advanced Hydraulics: Auto hydraulic pump system available on certain models for smooth compression and safety.
Smart Operation: PLC control with TOUCH SCREEN HMI is available for automated process control.
Auto Lubrication: Includes auto lubrication system and drip feed for punches, minimizing maintenance.
Optional QC: Auto weight control (AWC) and single tablet rejection (AFR) are optional for continuous quality control.
Optional Bi-Layer: Bi-Layer attachment is available as an optional capability for complex products.
Fast Changeover: Interchangeable turret is available in Pro Press DR IV for fast tooling changeover.
Effervescent Option: Paraffin spray system is available in I, II, III for lower punches for effervescent tablets.
cGMP Compliant: Fully compliant with cGMP model standards for hygienic and quality manufacturing.
| Feature | Press+ DR I | Press+ DR II | Press+ DR III | Press+ DR IV |
|---|---|---|---|---|
| No. of Stations | 27 / 35 / 45 | 37 / 45 / 61 | 51 / 61 / 75 / 81 | 49 / 61 / 73 |
| Tooling | D / B / BB | D, B, BB | D / B / BB / SP | D / B / BB |
| Max. Tablet Diameter (mm) | 25 / 116 / 13 | 25 / 16 / 13 | 25 / 16 / 13 / 11 | 25 / 16 / 13 |
| Max. Depth of Fill (mm) | 20 / 17 / 17 | 20 / 17 / 17 | 20 / 17 / 17 / 17 | 20 / 18 / 18 |
| Max. Tablet Thickness (mm) | 8 | 8 | 8 | 8 |
| Max. Output / Hour | 155,520 / 201,600 / 259,200 | 266,400 / 324.000 / 439,200 | 367,200 / 439,200 / 540,000 583,200 | 470,400 / 585,600 / 700,800 |
| Max. Turret RPM | 48 | 60 | 60 | 100 |
| Max. Feeder RPM | 35 | 35 | 35 | 70 |
| Max. Main Compression (Ton) | 10 / 6.5 / 6.5 | 10 / 6.5 / 6.5 | 10 / 6.5 / 6.5 / 6.5 | 10 |
