PACKING

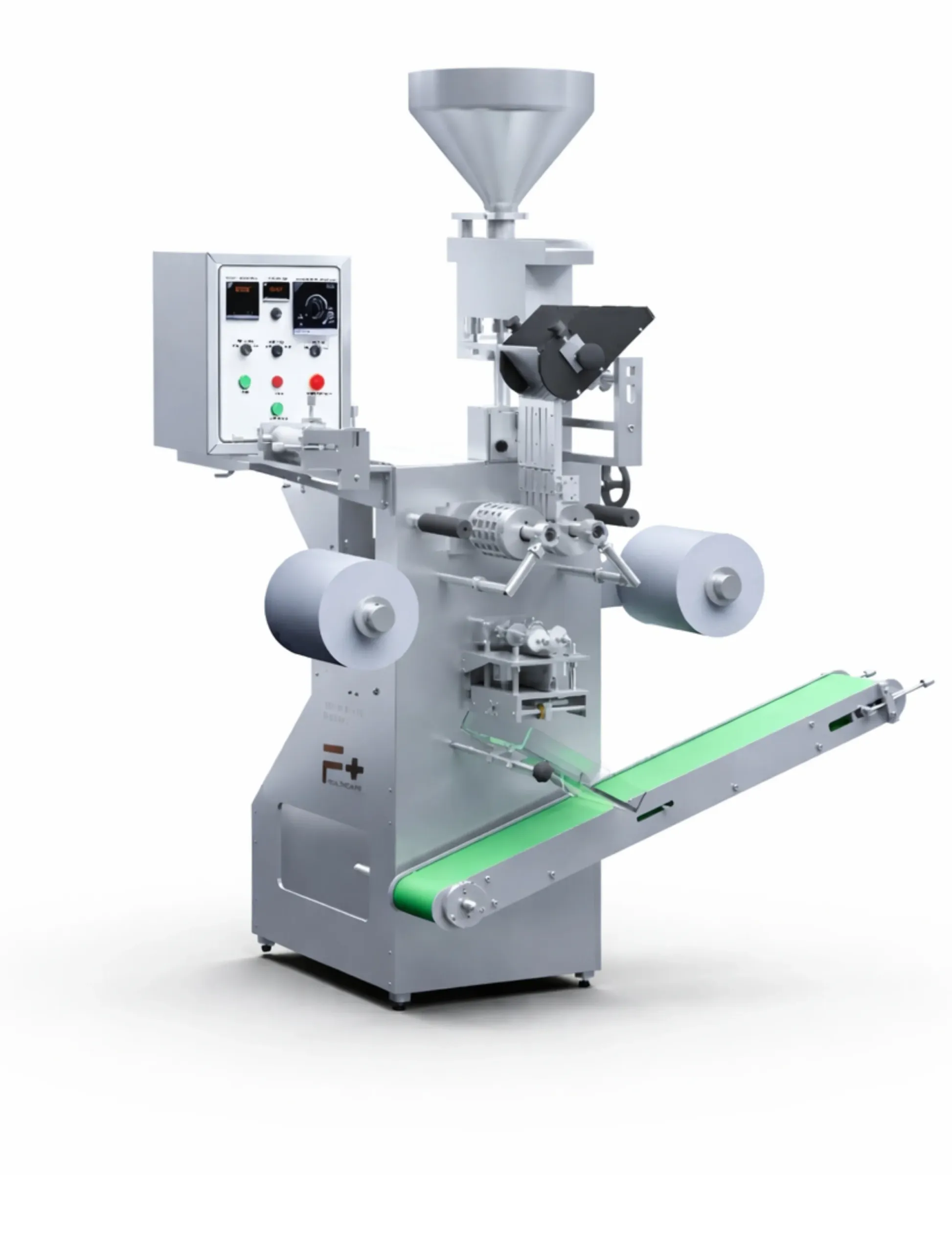

Pack+ STP
Product Suitability: Suitable for tablets, capsules, bolus, and similar products
Foil Compatibility: Handles most heat-sealable foils such as paper-poly, glassine-poly, and cellophane-laminated aluminum
| Feature | 4 – TRACK | 6 – TRACK | 8 – TRACK |
|---|---|---|---|
| No. of Tracks | 4 | 6 | 8 |
| Foil Reel Width | 155 MM | 210 MM | 300 MM |
| Foil Reel O.D | 250 MM Dia | 250 MM Dia | 250 MM Dia |
| Foil Reel Core Diameter | 76 MM Dia | 76 MM Dia | 76 MM Dia |
| Output per min. (Tablets/Min) | 500 – 1200 | 1000 – 1500 | 1200 – 2000 |
| Electrical Data | 2 KW, 1440 RPM, 3 Phase | 2 KW, 1440 RPM, 3 Phase | 2 KW, 1440 RPM, 3 Phase |
| Net Weight | Approx. 420 KGS | 520 KGS | 620 KGS |
| Compressed Air Req. at 6 Bar Pressure | 20 | 20 | 20 |
