GRANULATION EQUIPMENT
Bin Blender
Octagonal Blender
Double Cone Blender
V Blender
Cube blender
Blend+ BB
- Superior Mixing: Achieves the highest level of homogeneous mixing for consistent product quality.
- Smooth Rotation: Guarantees bumpless rotation, ensuring gentle and stable blending of materials.
- Safety Focused: Equipped with safety guards and a limit switch for enhanced operator protection.
- Variable Speed: Optional VFD-based speed control provides precise, customizable blending cycles.
- Global Standards: Full compliance with key certifications and guidelines GAMP5, CE, ATEX, and cGMP compliant.Â
- Smart Control:Â HMI control for advanced, automated process management.
- Data Compliance:Â Compliant with 21 CFR Part 11 / SCADA control for comprehensive data logging, regulatory compliance and better understanding of OEE (Overall Equipment Effectiveness).

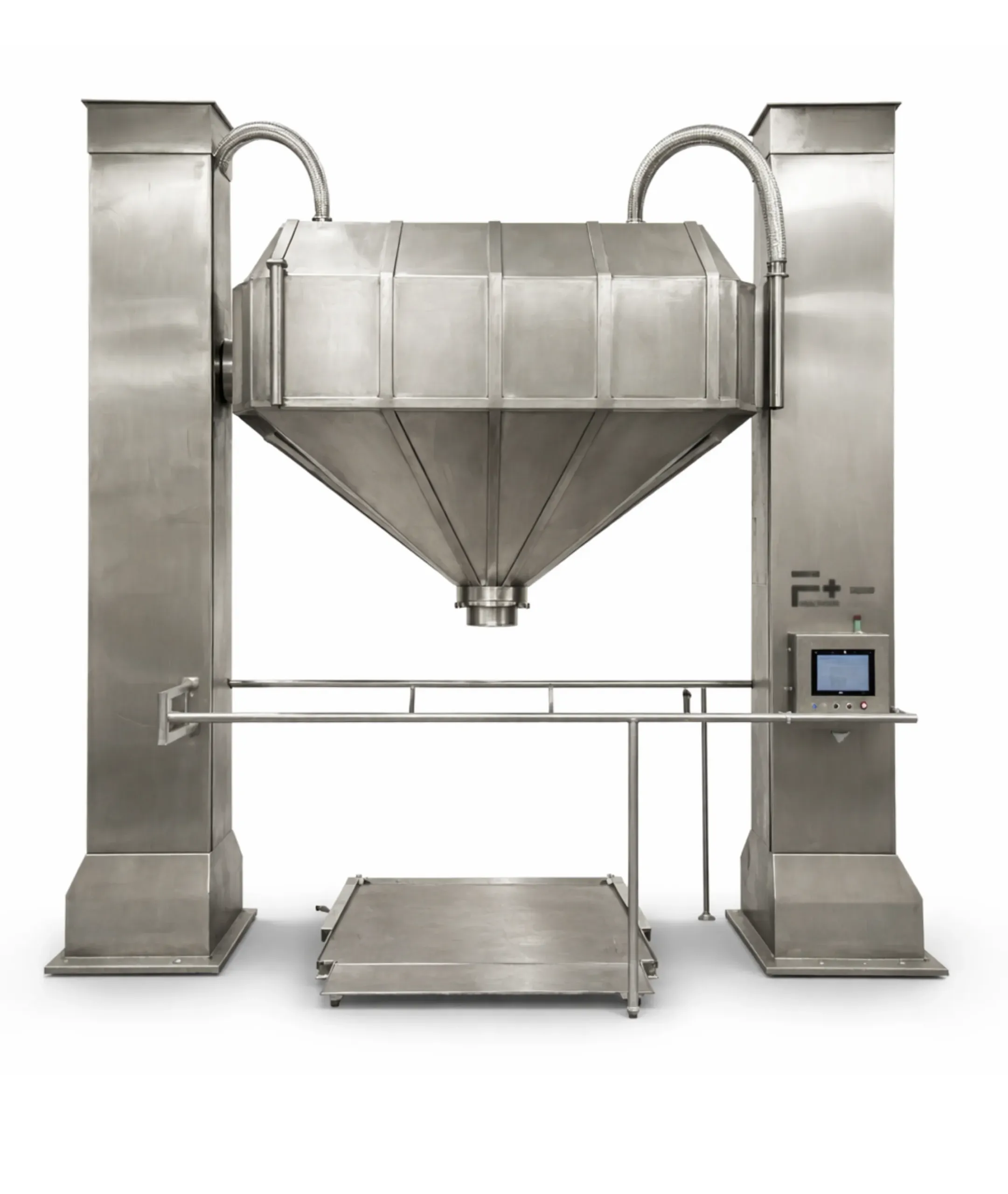

Blend+ OB
- High Capacity: Designed to process a large batch size, utilizing approximately 70% of the blender volume efficiently.
- Space Efficient: Unique body geometry about the pivot axis ensures compactness and minimizes floor space usage.
- Reduced Energy: Compact design naturally results in lesser power consumption during operation.
- Inspect Clean: A full-size inspection window is provided for visual checking of the unit after cleaning.
- Lump Breaking: Internal baffles (plate/pipe section) help break down any soft lumps formed by excessive moisture.
- Advanced Blending: Contra rotary baffle with mechanical seals can be supplied for critical, highly specialized mixing.
- Ideal For: Most ideal for lubrication of granules and for homogenization of multiple small batches into one large lot.
- Drum Loading: Material can be charged using the Drum Charging method.
- Ergo Loading: Supports charging via a Lifting & Positioning Device for safer, ergonomic material handling.
- Dust-Free loading: Charging can be accomplished via the Vacuum Powder Conveying process for a completely dust-free operation.
- Smart Control: HMI control for advanced, automated process management.
- Data Compliance:Â Compliant with 21 CFR Part 11 / SCADA control for comprehensive data logging, regulatory compliance and better understanding of OEE (Overall Equipment Effectiveness).

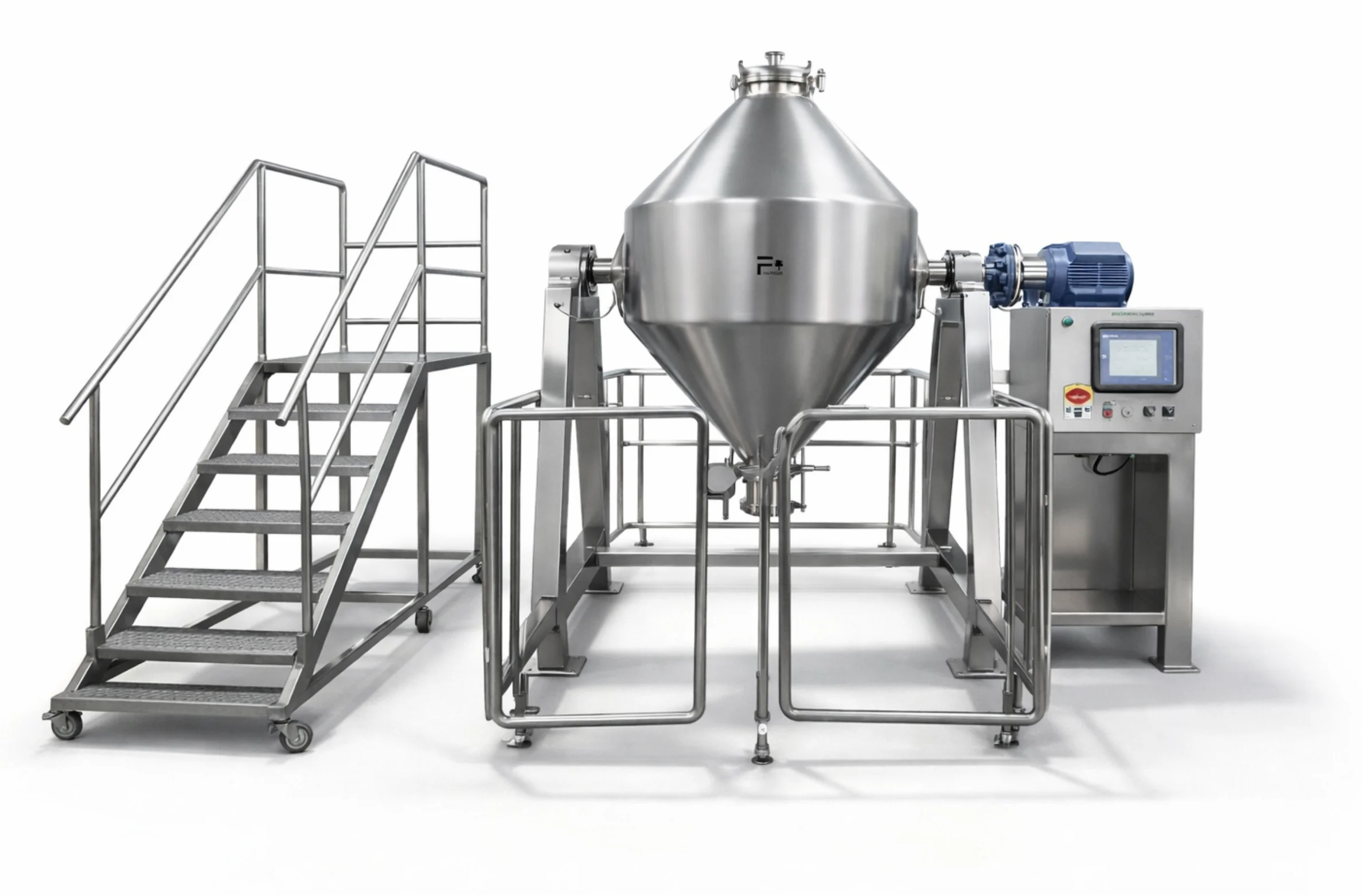

Blend+ DC
- Free Flow: Operates on the free flow principle for effective material movement.
- Rapid Mixing: Used for rapid mixing, lubrication, and homogenizing of free-flowing powder and granules.
- Uniform Walls: Uniform, multidimensional wall arrangement ensures excellent blending and mixing results.
- Compact Size: A compact design makes it a good solution for rooms having space constraints.
- Corrosion Resistant: Corrosion-resistant, with medical and food-grade contact parts.
- User Friendly: Easy to install, operate, and clean, making it convenient and user-friendly.
- Vessel Swap: Optional interchangeable vessel for R&D and Polit scale equipment ensuring enhanced production flexibility.
- HMI Control: HMI control for advanced, automated process management.
- Data Compliance:Â Compliant with 21 CFR Part 11 / SCADA control for comprehensive data logging, regulatory compliance and better understanding of OEE (Overall Equipment Effectiveness).

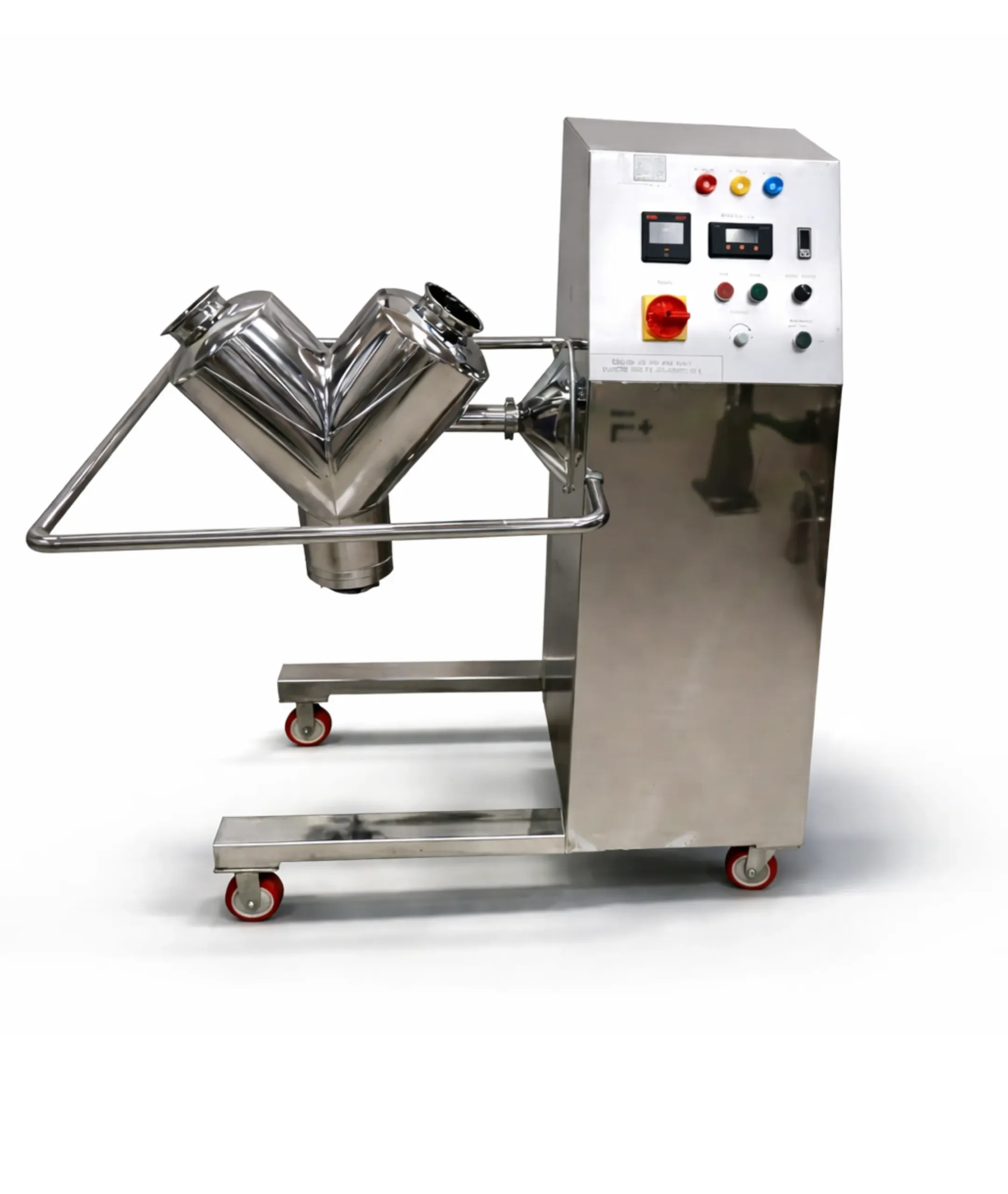

Blend+ VB
- V-Shape: Consists of two cylinders cut to an 80° angle and welded to form the V-shaped body.
- Tumbling Action: The unit tumbles end over end like the double cone blender.
- Splits Recombines: Mixing occurs as the material continuously splits and recombines during free fall.
- Flexible Capacity:Â Available in multiple capacity for easy scale from R&D to Pilot to Production batches.
- Rapid Homogeneity: Blending is achieved in a rapid 5 to 15 minutes with superior homogeneity.
- Creates Shear: The free-falling action creates slight shear and attrition, resulting in minor particle size reduction.
- Wide Suitability: The blender is suited to most powders and is widely used in the pharmaceutical industry.
- Intensifier Bar: Provision for a pin-type intensifier bar is used for breaking soft, friable agglomerates.
- Intimate Blend: The intensifier ensures an intimate blend when minor additives are used.
- HMI Control: HMI control for advanced, automated process management.
- Data Compliance:Â Compliant with 21 CFR Part 11 / SCADA control for comprehensive data logging, regulatory compliance and better understanding of OEE (Overall Equipment Effectiveness).

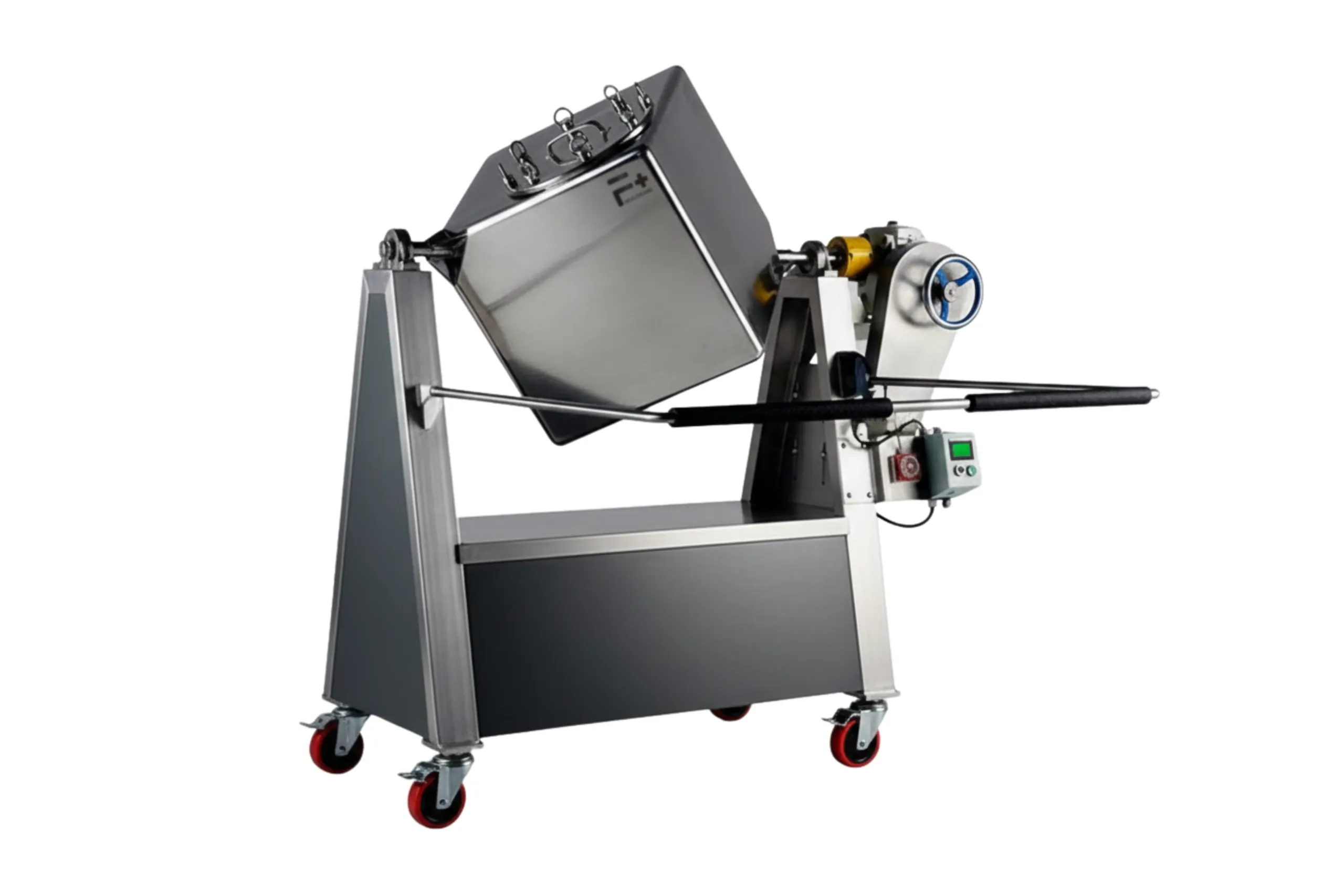

Blend+ CB
- Rapid Mixing: Based on a tumbling movement that produces a homogeneous mixture in the shortest possible time.
- Gentle Process: The product to be mixed is treated very gently throughout the process.
- Mixing Rods: Three internal mixing rods made of stainless steel deflect and interfere with the tumbling movement.
- SS Housing: The external housing is manufactured from high-quality stainless steel.
- HMI Control: HMI control for advanced, automated process management.
- Data Compliance:Â Compliant with 21 CFR Part 11 / SCADA control for comprehensive data logging, regulatory compliance and better understanding of OEE (Overall Equipment Effectiveness).
